Project 128

Completed: 2025

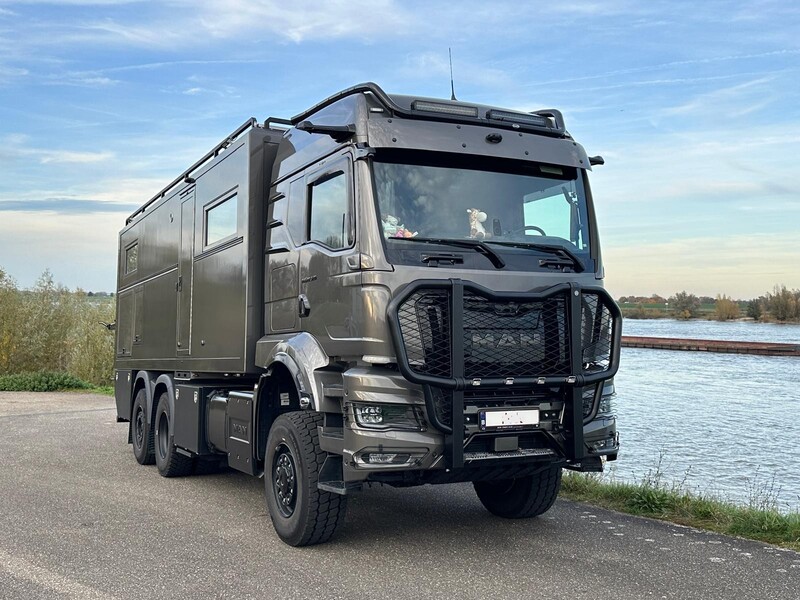

A Twiga camper unit on a new MAN TGS 28.520 (6×4 with lift axle). A spacious camper unit with a length of 7.00 meters. This camper unit has been customized according to the customer’s specifications.

chassis nr
128

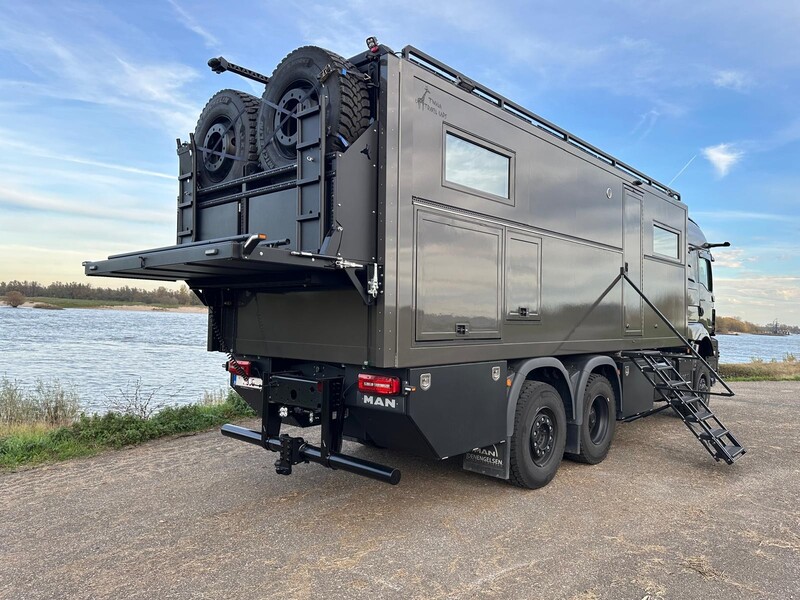

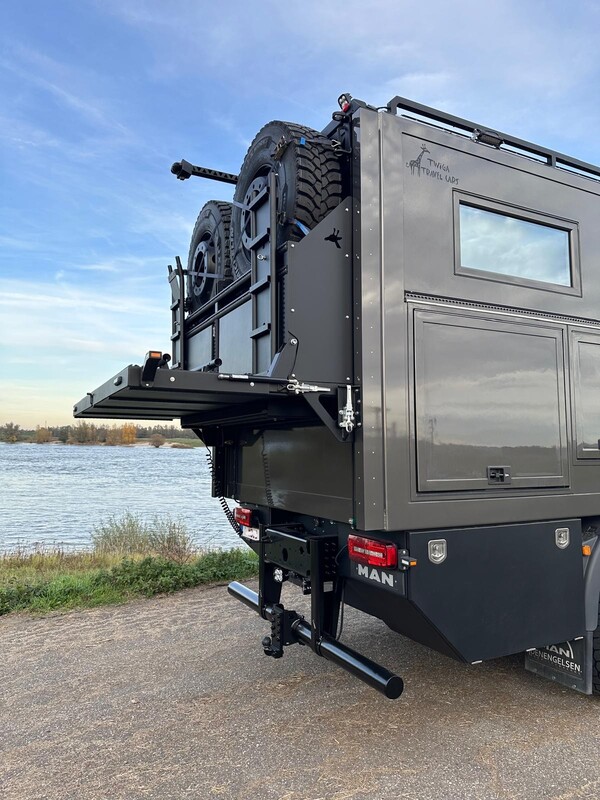

Exterior: Twiga’s well-known aluminum frame, 60 mm panels for the highest insulation values, 4-point suspended subframe. At the rear of the camper unit, a hydraulic lifting system is integrated for the spare wheels and the motorcycle. The exterior also features roof rails with spotlights, as well as storage boxes. Twiga builds to measure and according to your wishes.

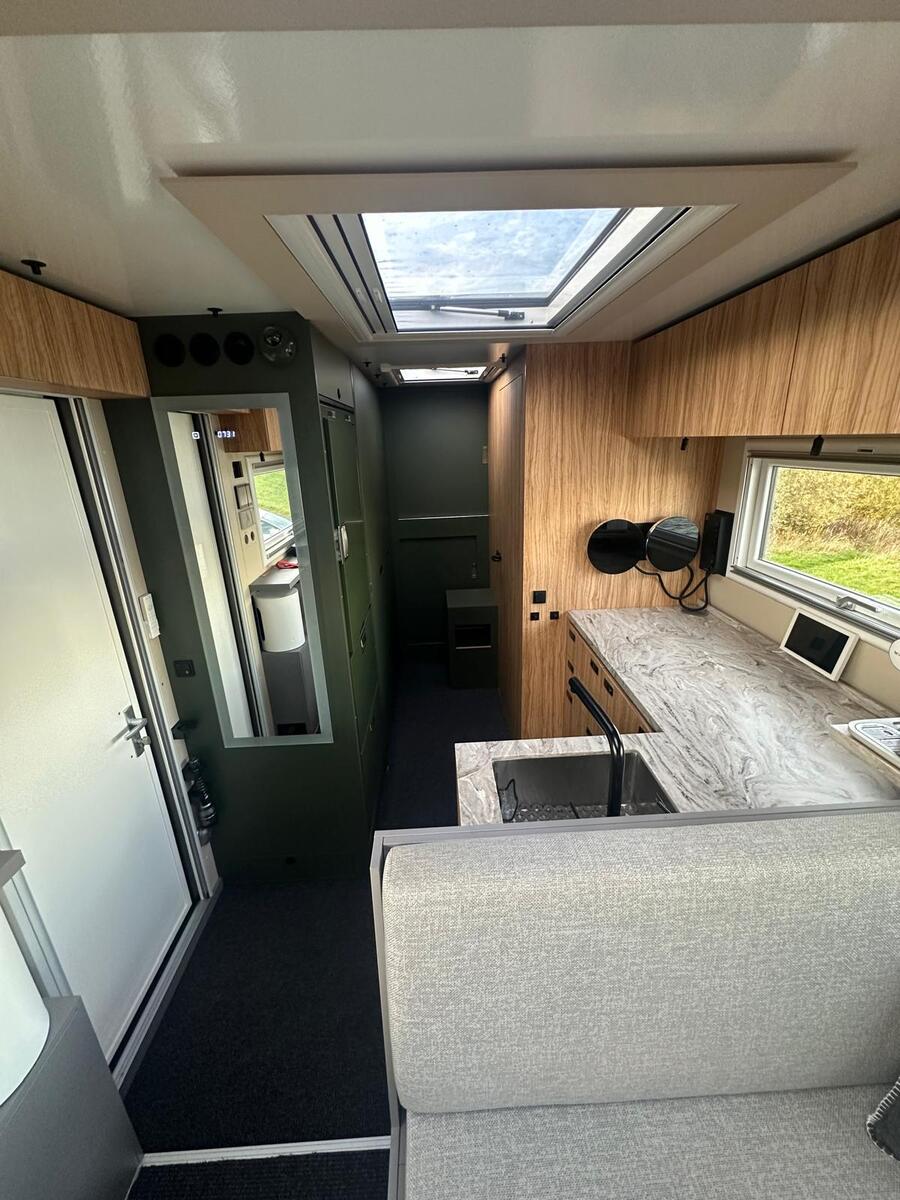

Interior:  The camper unit is equipped with plenty of windows and roof hatches that let in ample natural light, as well as practical hatches and a 3-point lockable entrance door. A convenient passage connects the camper unit to the MAN cabin. At the front of the living area, there is a large, comfortable lounge seating area that can also be converted into an additional bed. Various storage compartments in the seating provide extra space for belongings.

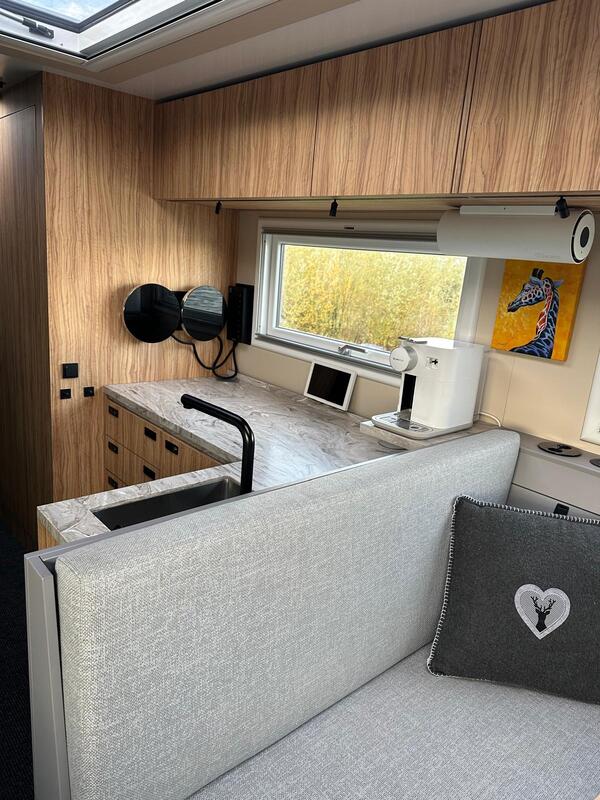

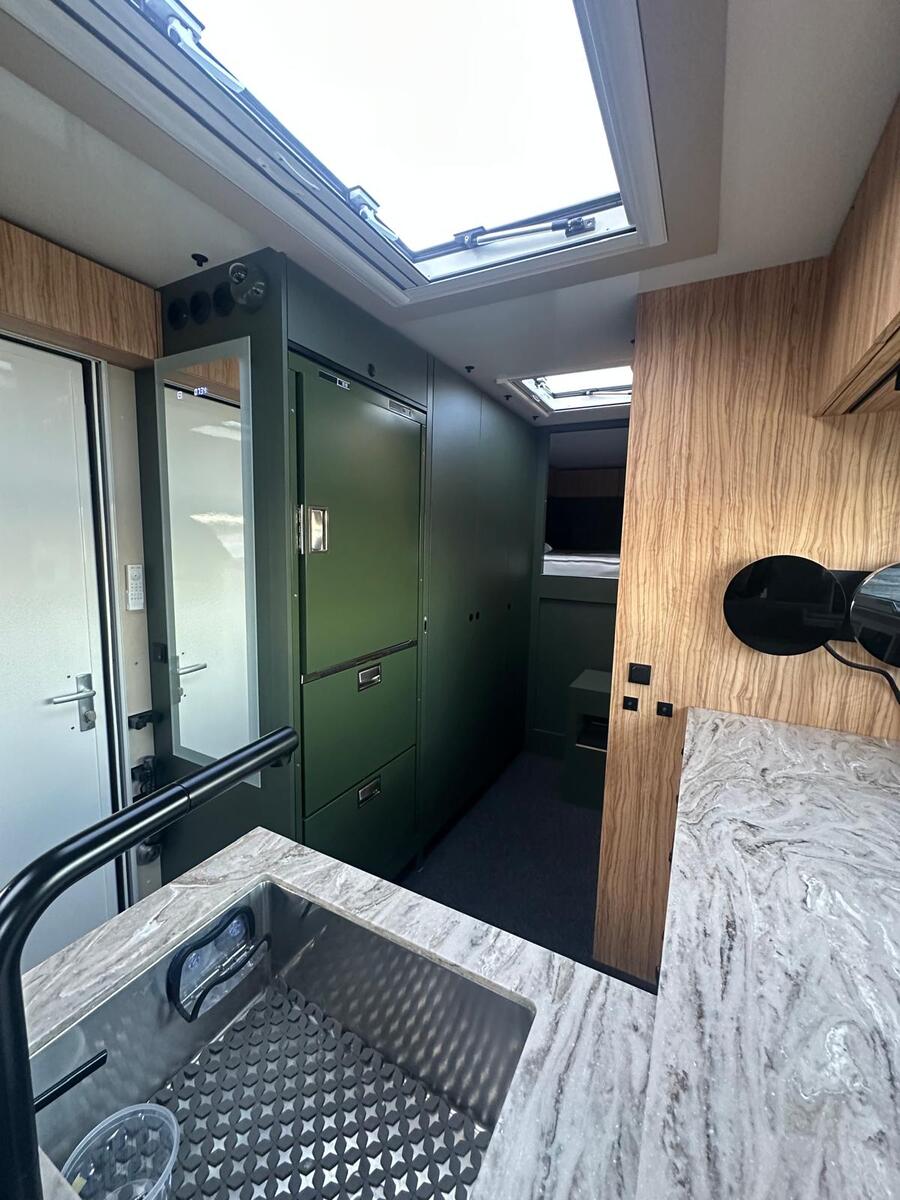

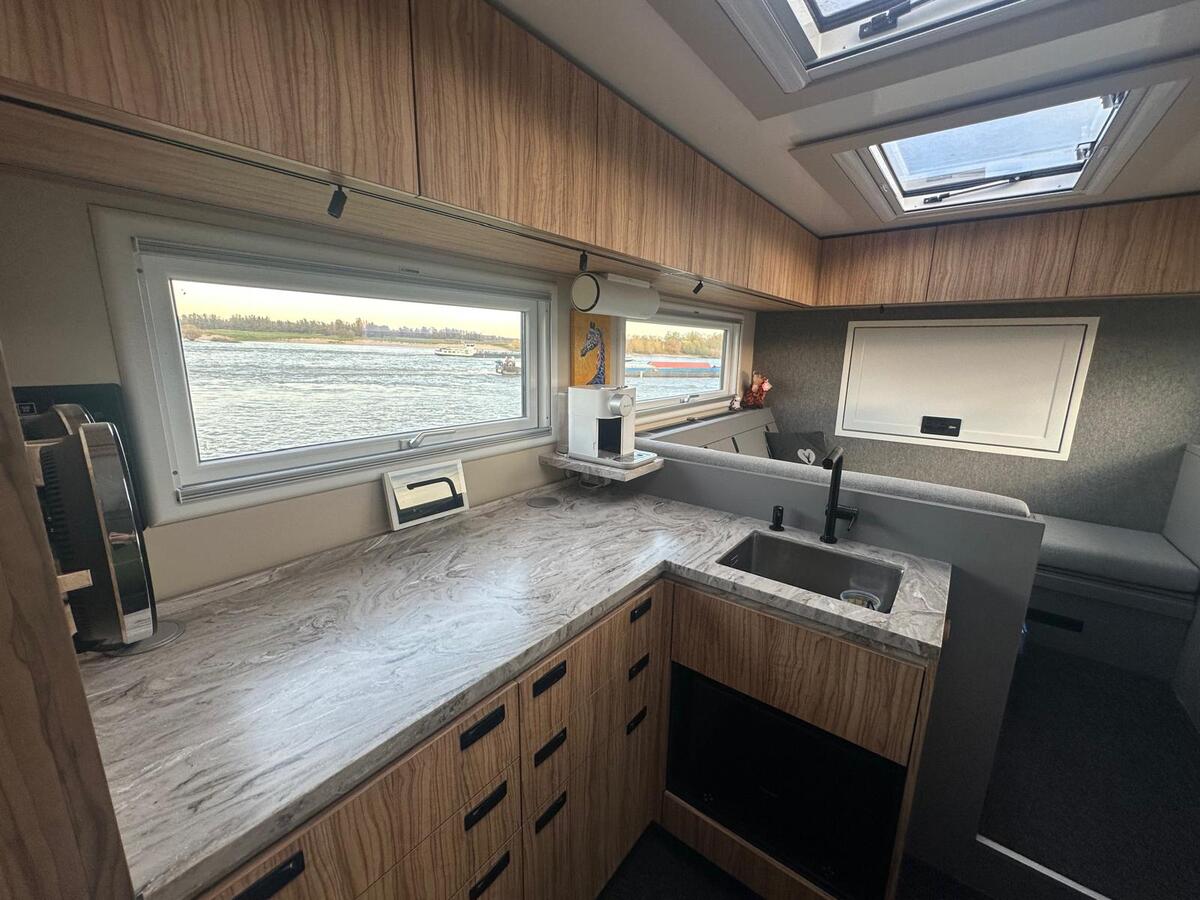

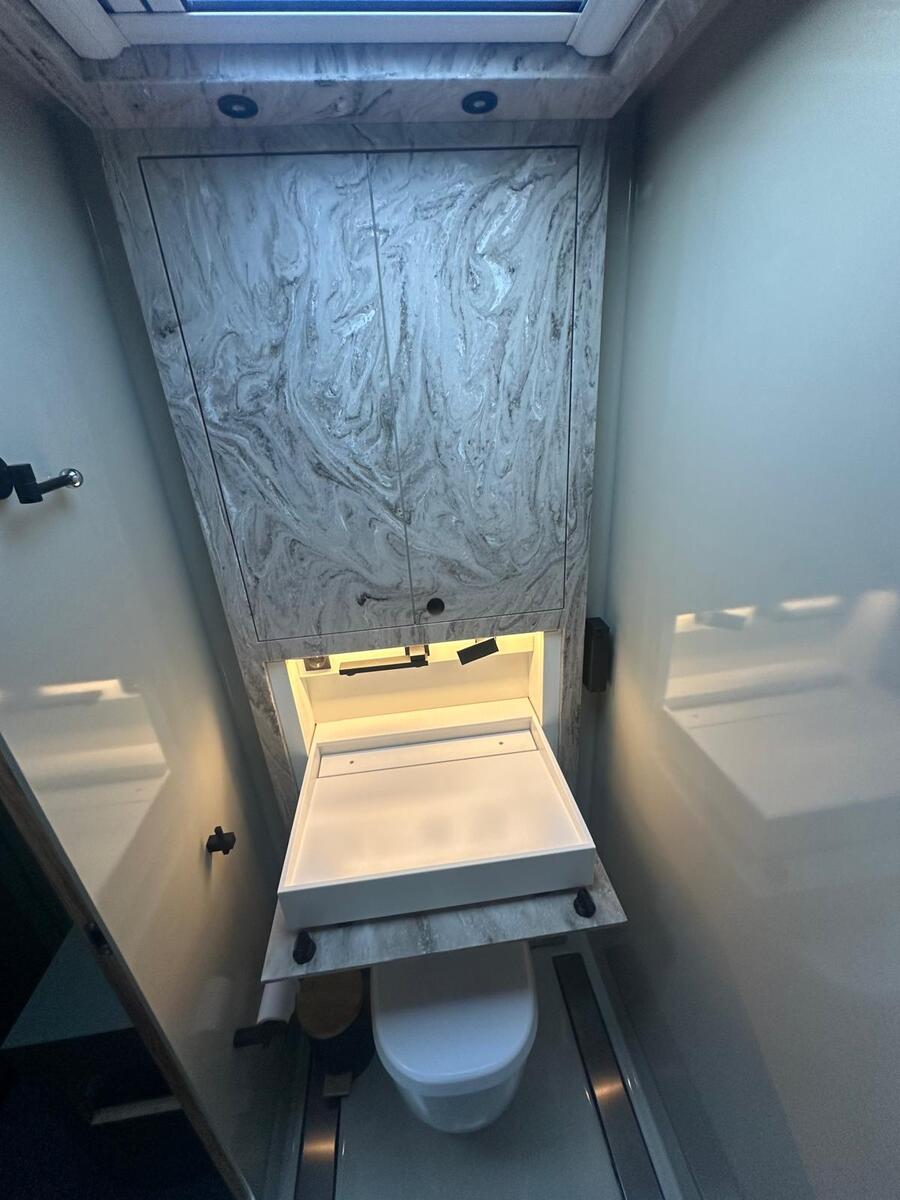

Next to the lounge area is a fully equipped L-shaped kitchen with removable induction cooktops, a coffee machine, and a combi oven. Opposite the kitchen is a 360-liter fridge/freezer combination. The spacious bathroom, located between the kitchen and the bedroom, features a custom-made Solid Surface interior, a rain shower, a foldable washbasin, a Clesana toilet, and multiple storage cabinets.



Opposite the bathroom is a large three-part storage and wardrobe unit with hanging rods, shelves, and storage boxes. At the rear is a spacious sleeping area with small shelves and cabinets for books and personal items. The living area features multiple power outlets and USB charging points, while adjustable LED spotlights and indirect lighting create a cozy atmosphere.



Technical installations are located at both the front and rear of the unit, including a 1216 Ah lithium battery system and a roof fully equipped with solar panels. Convection heating with underfloor heating and continuous hot water ensures even warmth and a comfortable, home-like climate.

Building method

Even this large living unit is built with an aluminum cage construction. A steel subframe ensures that no torsion is placed on the living unit.

Specifications

Permissible weight in kg
28.000
Length camper unit
7.000 mm
Width camper unit
2.500 mm
Indoor height
2.130 mm
